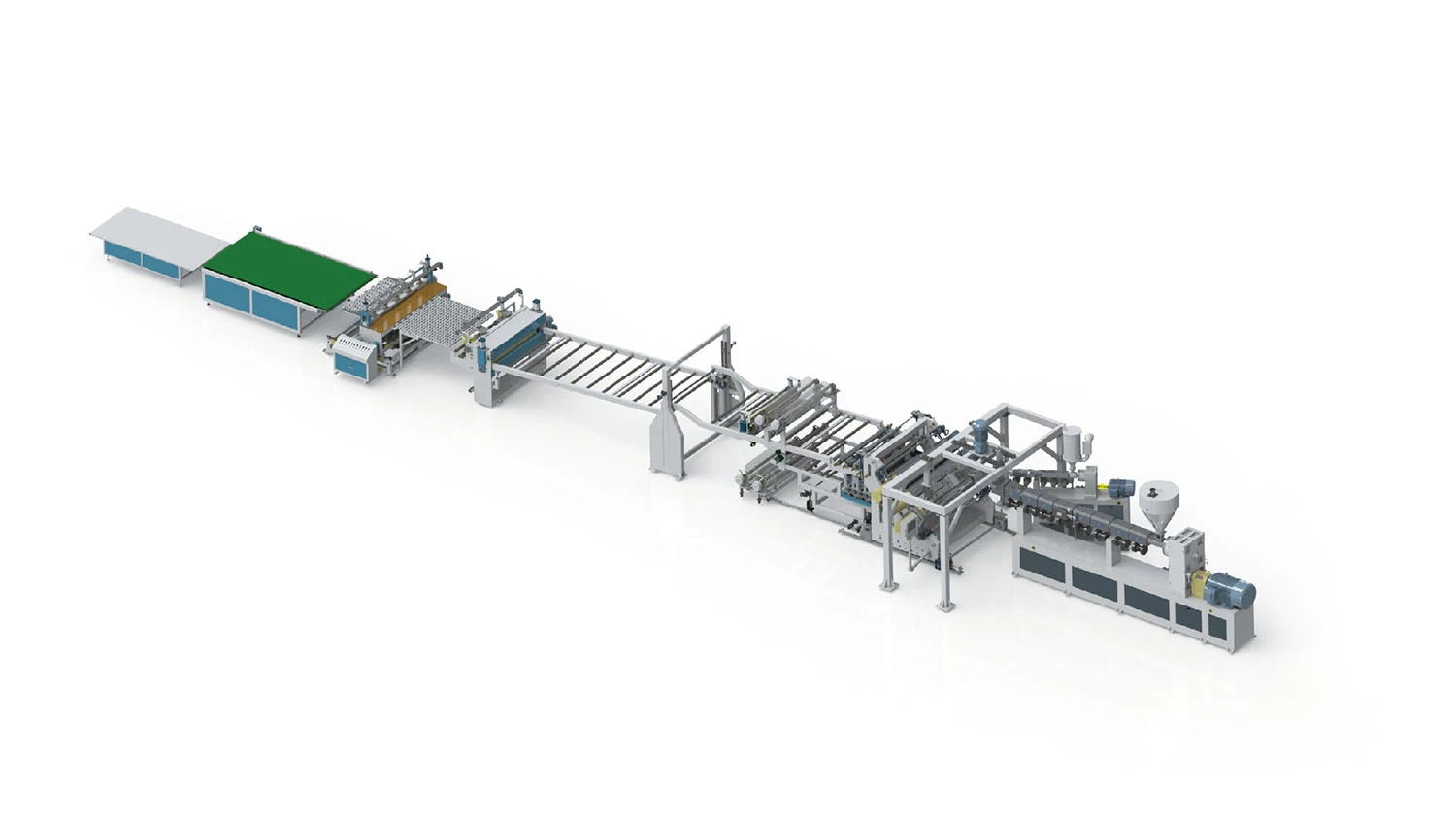

PC Corrugated Sheet & Plate Extrusion Line

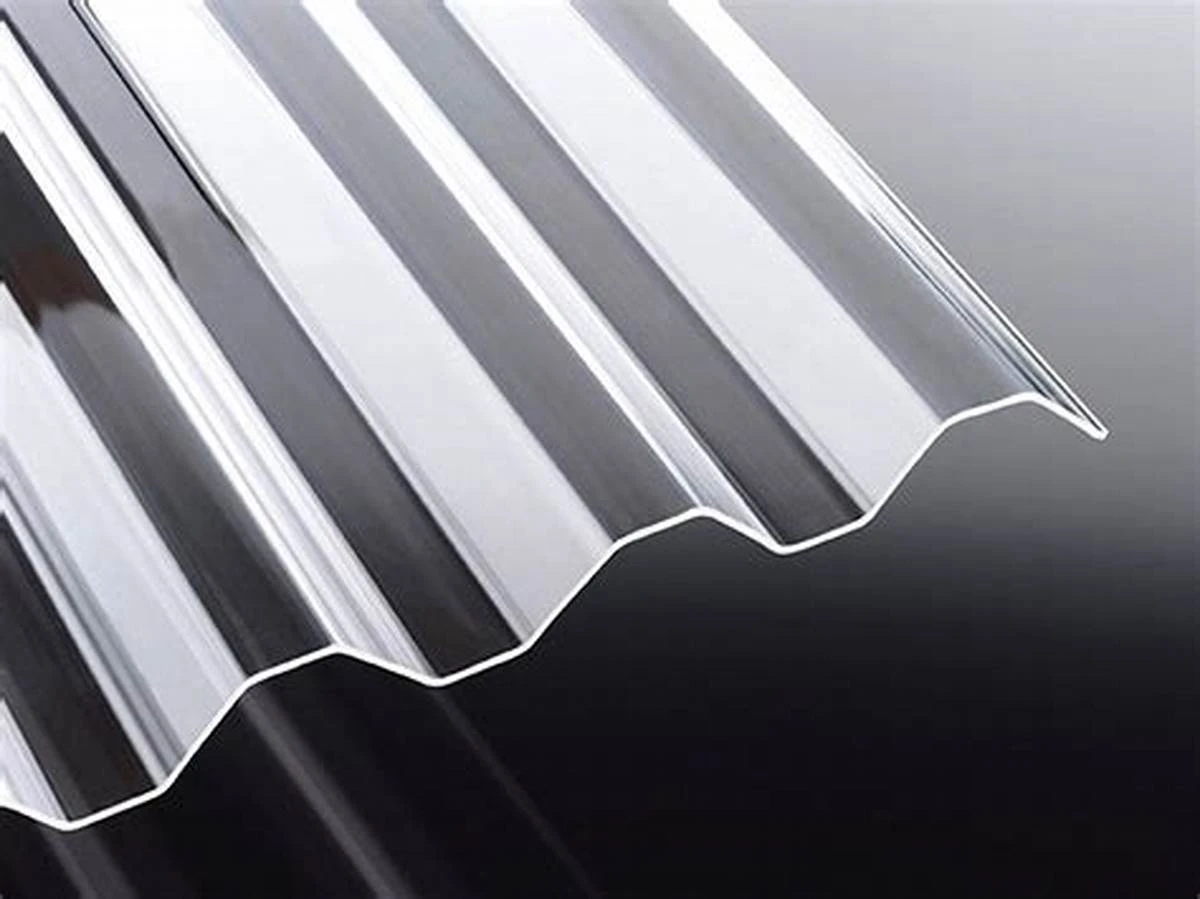

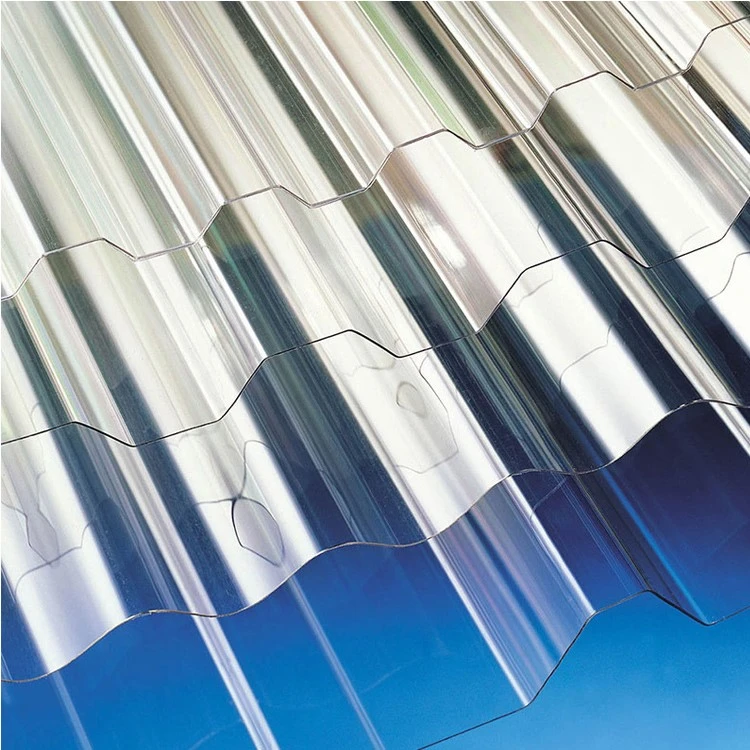

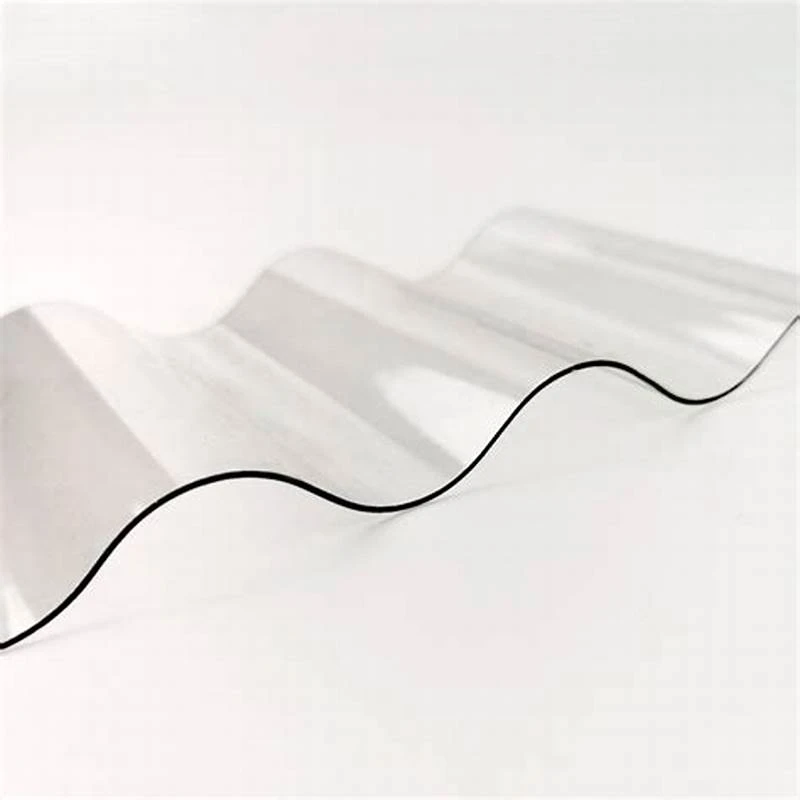

PC corrugated tiles are mainly used for lighting on roofs and walls of enterprises, factories, etc.
Production raw materials: polycarbonate environmentally friendly material. It has excellent stability, is not easy to change the color and has a high ability to absorb ultraviolet rays in the ultraviolet spectrum range, effectively blocking ultraviolet rays.

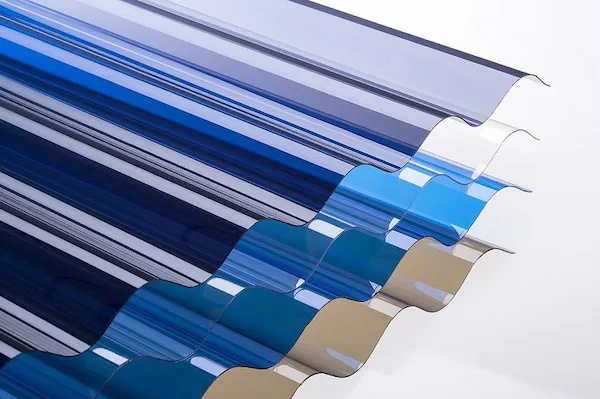

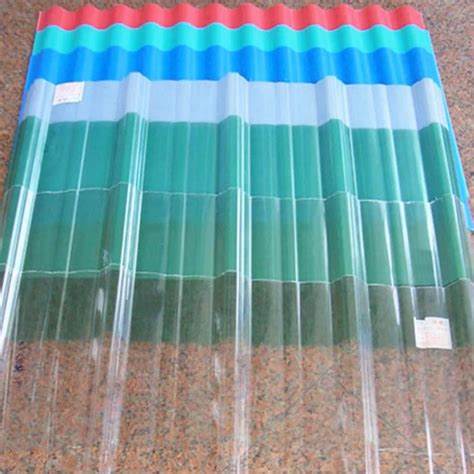

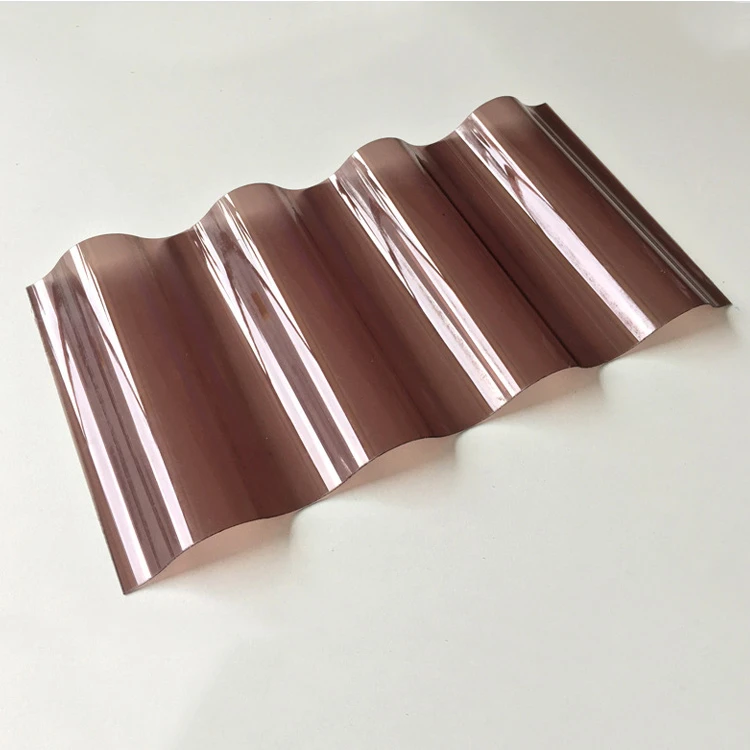

It can make different kinds of color according to the market requirements.


Equipment feature
Jwell screw brand, JINHAILUO ®, Chinese No.1 brand which was built in 1978 has more than 40 years of experience in making screws.

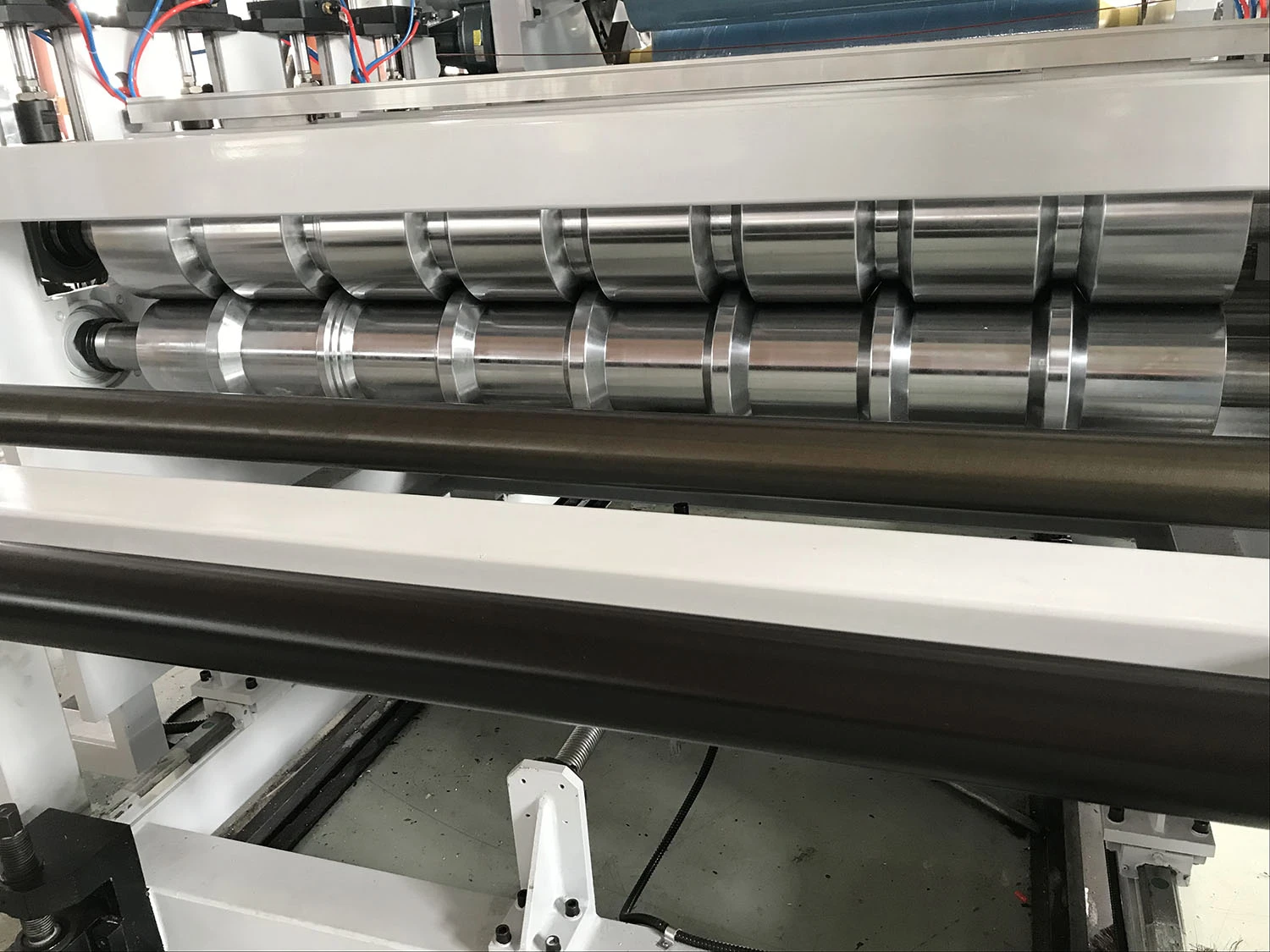

The material of calender roller is made by 42 CrMo alloy steel. This is the best steel for PC and PMMA hard material.
Melt pump is from Maag or Jwell.
Main Motor is permanent magnet synchronous motor. Energy saving.
The calender roller motors are servo motors and make the speed stable.
All the barrel heater design is energy saving design.
The whole line is controlled by Siemens PLC.
Equip with automatic stacking machine. Saving the labor cost.

Technical parameters
|
Model |
JWS130/38 |
JWS120/38 |
|
Material |
PC/PMMA/GPPS/ABS |
PC/PMMA/GPPS/ABS |
|
Product thickness |
1.5-10mm |
1.5-10mm |
|
Product width |
2200mm |
1400mm |
|
Extruder size |
Φ130/38+φ45/30 |
Φ120/38 |
|
Max capacity |
550kg/h |
450kg/h |
