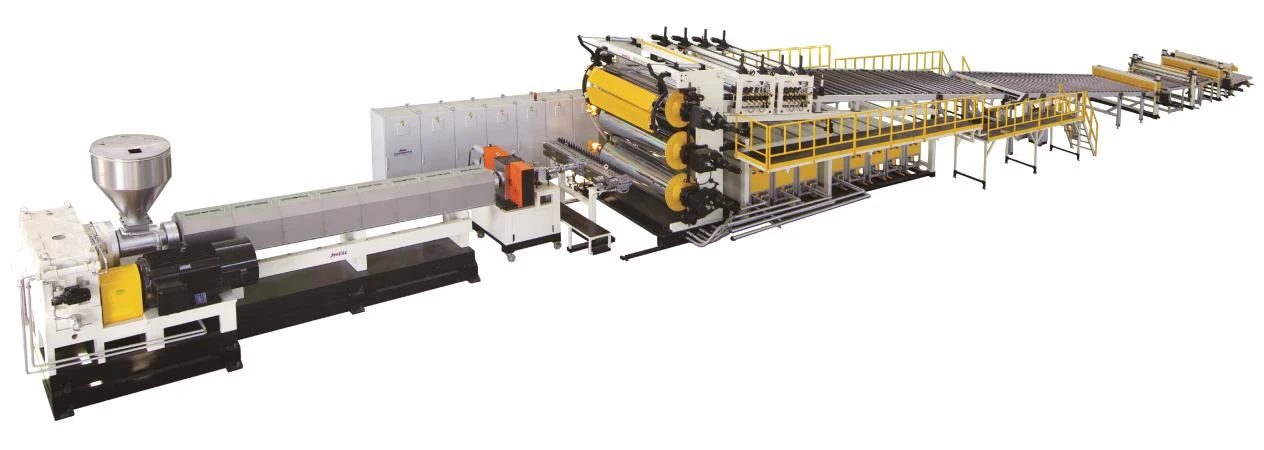

PVC Board Production Line
Description
Technical Parameters
application
PVC thick board or plate can be widely used different kinds of areas now. For example, chemistry industry, anti-erosion industrial, environmentally-friendly equipment industrial and so on.
Machine advantage
Jwell started to make screw from 1978. Jwell is the first company who make the screw in China. Until now Jwell have more than 40 years experience. In the extrusion line, the most important part is screw. So Jwell always use highly-sophisticated screw design for customer in order to give customer the most satisfied screw melt.
In order to get better filtering effect, Jwell always choose the bigger size of screen changer.
Jwell T die technology update every day. The quality is almost same like some other oversea T die quality now.
The whole line use PLC control.
All the motors are servo motors.
All the cables have plugs. Easy for maintainance.
Main technical parameter
|
Model |
Extruder model |
Suitable material |
Product width |
Product thickness |
Capacity |
|
SJZ80/156 |
Φ80/156 |
PVC |
1220mm |
3-30mm |
400kg/h |
|
SJZ 92/188 |
Φ92/188 |
PVC |
1220-2000mm |
3-30mm |
600kg/h |
|
SJZ 110/220 |
Φ110/220 |
PVC |
2000-2500mm |
3-30mm |
1200kg/h |
|
SJP 135/28 |
Φ135/28 |
PVC |
2000-2500mm |
3-30mm |
1200kg/h |
