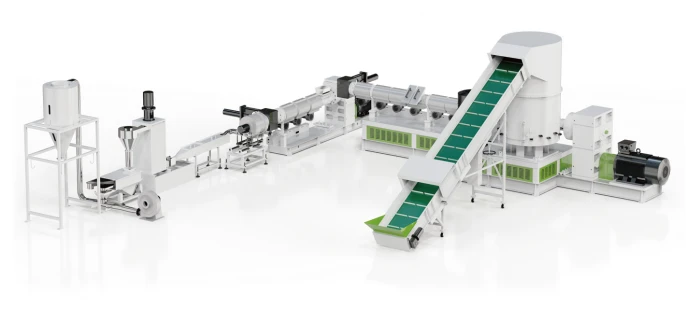

PP PE BOPP BOPET BOPA PA66 Waste Plastic Recycling Pelletizing Machine

Special Screw design and different configuration for the PP, PE, BOPP, BOPET, BOPA, PA66, etc dry film. The gearbox is high torque design in order to get enough torque and stable operation. The feeding system include the high speed blade for cutting the material and forceful feeding unit. The screw and barrel has special nitriding or bimetallic heating treatment and make sure the screw barrel are wearable. The screw and barrel has better mixing, good plasticization. Better design vacuum which can exhaust the water or gas so that the output are more stable and pellets are more uniform.
Send Inquiry

Description

Technical Parameters



Equipment introduction





●Special Screw design and different configuration for the PP, PE, BOPP, BOPET, BOPA, PA66, etc dry film.

●The gearbox is high torque design in order to get enough torque and stable operation.

●The feeding system include the high speed blade for cutting the material and forceful feeding unit.

●The screw and barrel has special nitriding or bimetallic heating treatment and make sure the screw barrel are wearable.

●The screw and barrel has better mixing, good plasticization

●Better design vacuum which can exhaust the water or gas so that the output are more stable and pellets are more uniform.



plastic pelletizing recycling machine   pelletizing machine for plastic recycling  pet pelletizing machine

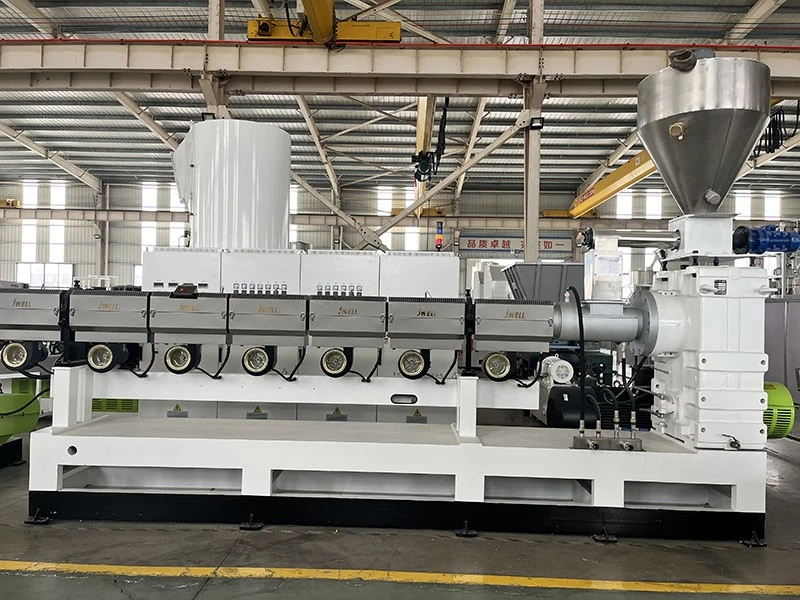

plastic recycling pelletizing machine

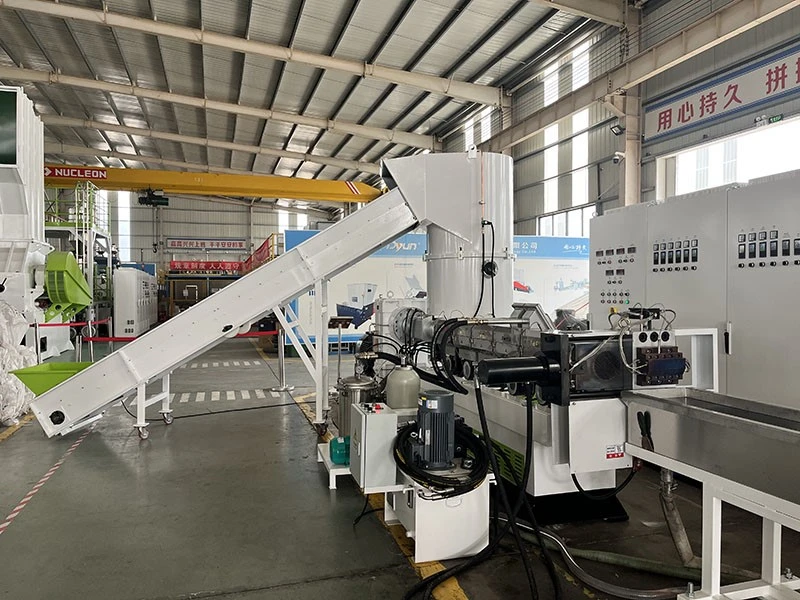

extrusion pelletizing machine



Main Technical Parameter





Model

Screw diameter

L/D

Screw Speed

Main motor Power

Output

JWP90

90mm

36:1

20-150rpm

75-90kw

200-350kg/h

JWP120

120mm

36:1

20-120rpm

110-132kw

300-500kg/h

JWP150

150mm

36:1

20-100rpm

160-200kw

450-700kg/h

JWP180

180mm

36:1

20-100rpm

250-315kw

700-1000kg/h

JWP200

200mm

36:1

20-100rpm

280-415kw

1000-1500kg/h
