Name: CPP Cast Film Extrusion Line - China CPP Cast Film Extrusion Line Manufacturers Suppliers - JWELL Machinery
Brand: JWELL
SKU: 227016017

The advantages of CPP cast film extrusion line are as follows:
Mechanical design---Jwell have a very skilled team which designed the machine according to aesthetic characteristics and build a global intelligent equipment.
Operation---Jwell is always willing to listen customer's requirements and then update the machines all the time.

Send Inquiry

Download

Description

Technical Parameters

Machine Display

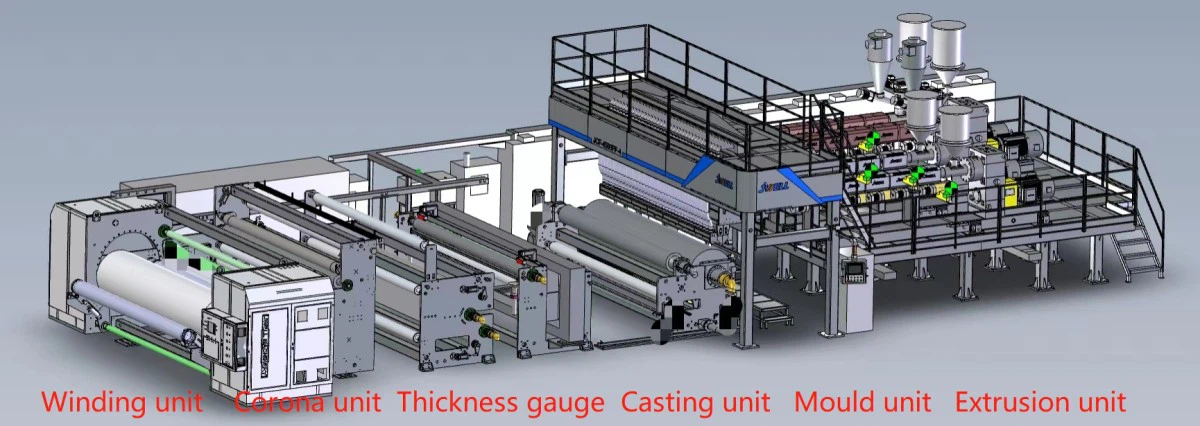

PP/CPP cast film extrusion line Production Process

Equipment Advantages

Mechanical design

Jwell have a very skilled team which designed the machine according to aesthetic characteristics and build a global intelligent equipment.

Operation

Jwell is always willing to listen customer's requirement and then update the machine all the time.

Machine automation

Jwell CPP cast film extrusion line can be a high degree of automation. So less worker need.

Application Areas

The PP cast film is widely used in different kinds of area now.

1- Food：flower packaging, transparent + single-side printing or composite; Such as: bread, biscuits, flower packaging, candy (twisted conjunctiva);

2- Tissue packaging: such as paper, toilet paper, roll paper, copy paper and other packaging; Dull film, used for high-end paper towels, food packaging, skin sense;

3- For non：transparent microporous breathable film, generally used in medical grade health care system;

Main Technical Parameters

Model	Screw diameter	T-die	Products width	Product thickness	Line speed
Model	mm	mm	mm	mm	m/min
JCFPE-120-1900	Φ120	1900	1600	0.02-0.15	180
JCFPE-125-2300	Φ125	2300	2000	0.02-0.15	180
JCFPE-135-2800	Φ135	2800	2500	0.02-0.15	180

Model	Width of die	Products width	Products thickness	Max line speed	Max capacity
Model	mm	mm	mm	m/min	kg/h
JCF-3000PP	3000	2700	0.02-0.12	250	800
JCF-3500PP	3500	3200	0.02-0.12	250	1000
JCF-4500PP	4500	4200	0.02-0.12	250	1400
JCF-5500PP	5500	5200	0.02-0.12	250	1600
