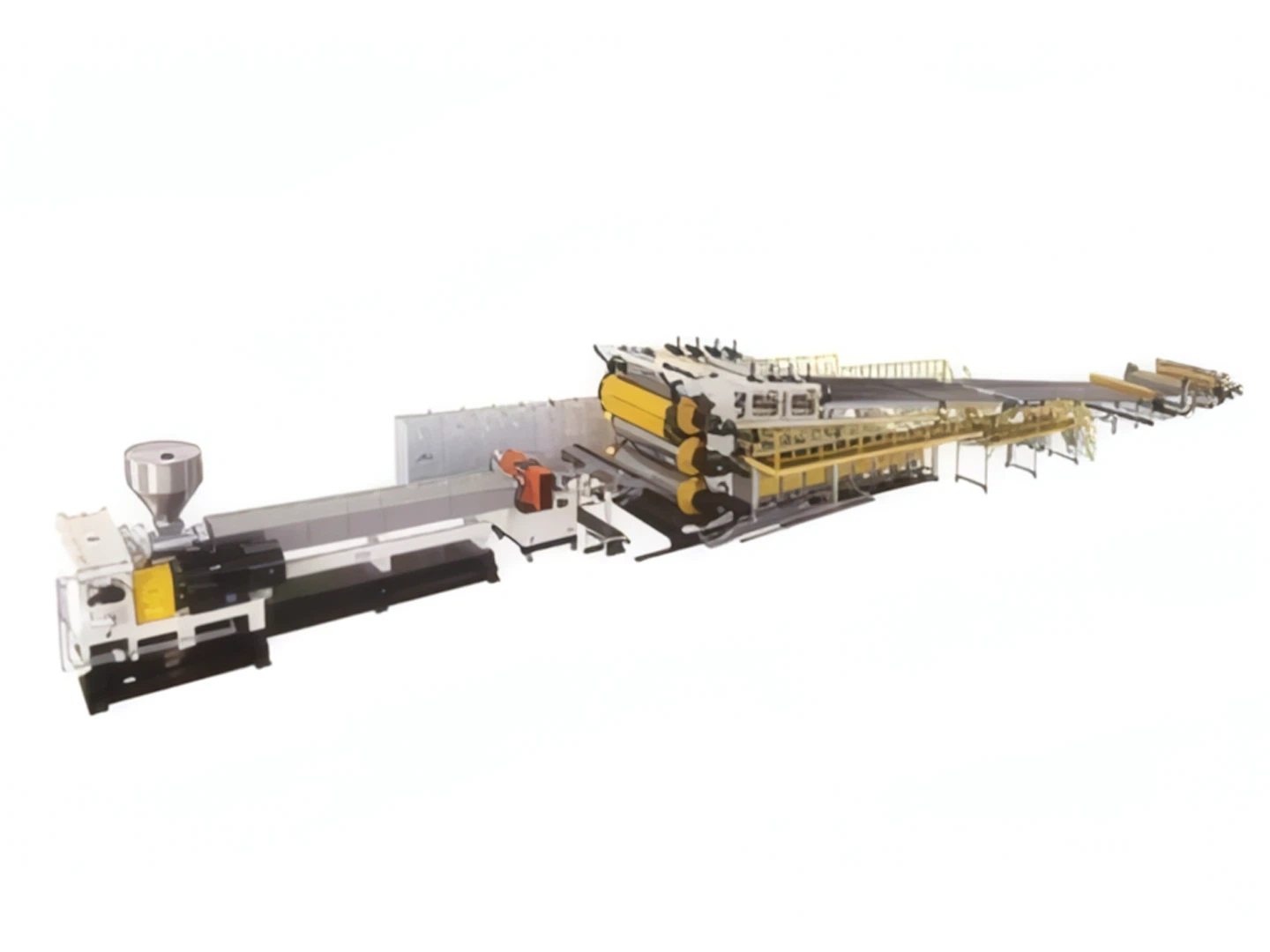

ABS HDPE PP Sheet Extrusion Line

ABS HDPE PP Sheet Extrusion Line

ABS PP or PP Modified material or PP mixing with HDPE of thick board or plate can be widely used different kinds of areas now. For example, chemistry industry, food industry, anti-erosion industrial, environmentally-friendly equipment industrial and so on.
Send Inquiry

Description

Technical Parameters



Application Areas





ABS PP or PP Modified material or PP mixing with HDPE of thick board or plate can be widely used different kinds of areas now. For example, chemistry industry, food industry, anti-erosion industrial, environmentally-friendly equipment industrial and so on.



ABS HDPE or HDPE Modified material or PP mixing with HDPE of thick board or plate is also widely used in every other aspect of our lives now.



Equipment Advantages





1. Jwell started to make screw from 1978. Jwell is the first company who make the screw in China. Until now Jwell have more than 40 years experience. In the extrusion line, the most important part is screw. So Jwell always use highly-sophisticated screw design for customer in order to give customer the most satisfied screw melt.

2. In order to get better filtering effect, Jwell always choose the bigger size of screen changer.

3. Jwell T die technology update every day. The quality is almost same like some other oversea T die quality now.

4. The whole line use PLC control.

5. All the motors are servo motors.

6. All the cables have plugs. Easy for maintainance.



1712711139159  1712711155240



1712711164237  1712711174113



1712711181865  1712711189666



1712711196450  1712711203624



1712711211089  1712711217750



Main technical parameter





Model

Extruder model

Suitable material

Product width

Product thickness

Capacity

JWS150-2000

Φ150/35

PP/PE/ABS

1220-1500mm

3-30mm

500kg/h

JWS170-2600

Φ170/35

PP/PE/ABS

1220-2000mm

3-30mm

700kg/h

JWS180/120-32000

Φ150/35

PP/PE/ABS

2000-2500mm

3-30mm

1200kg/h

JWS200-2000

Φ200/33

PP/PE/ABS

1220-1500mm

3-30mm

1200kg/h
