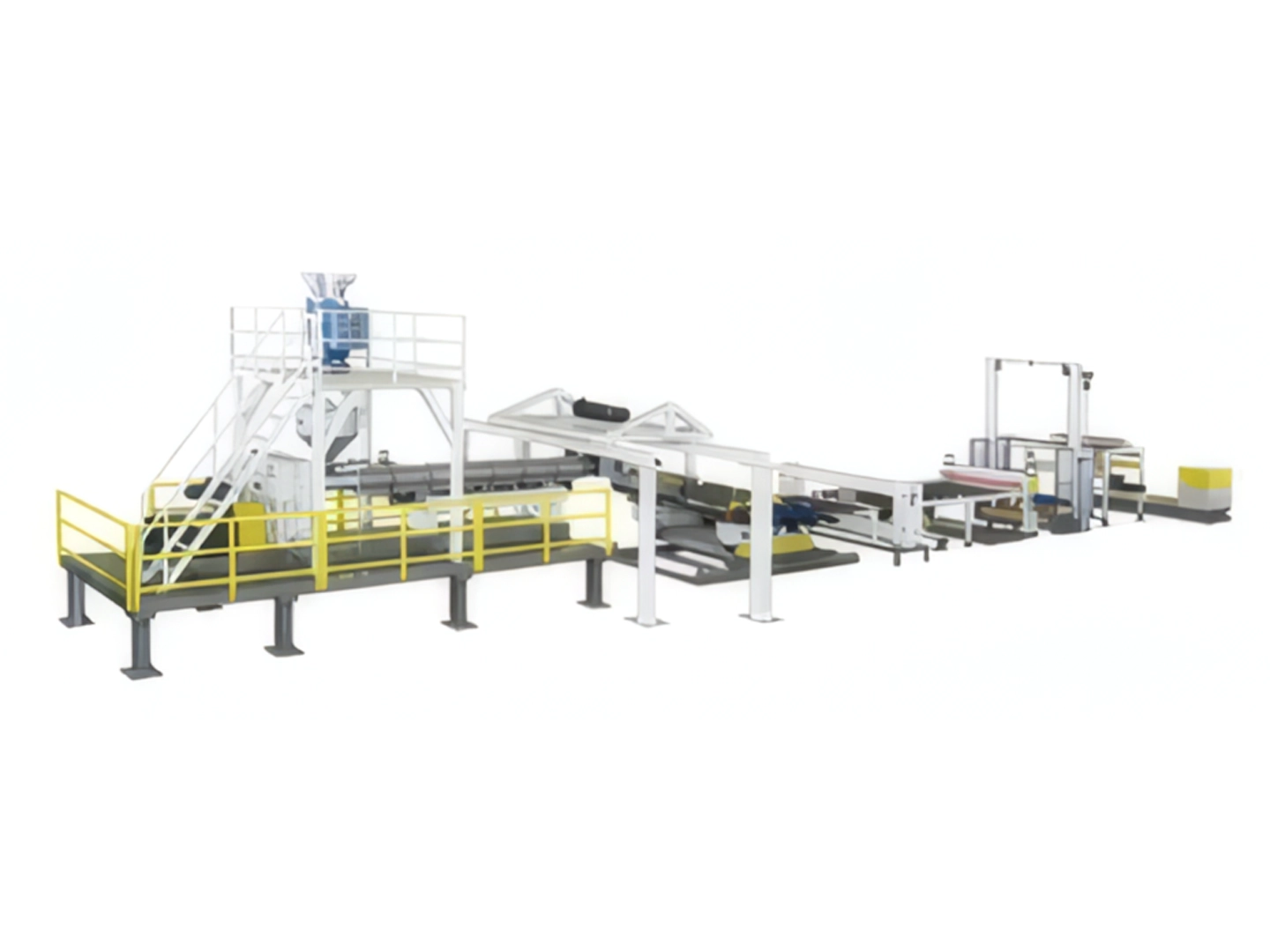

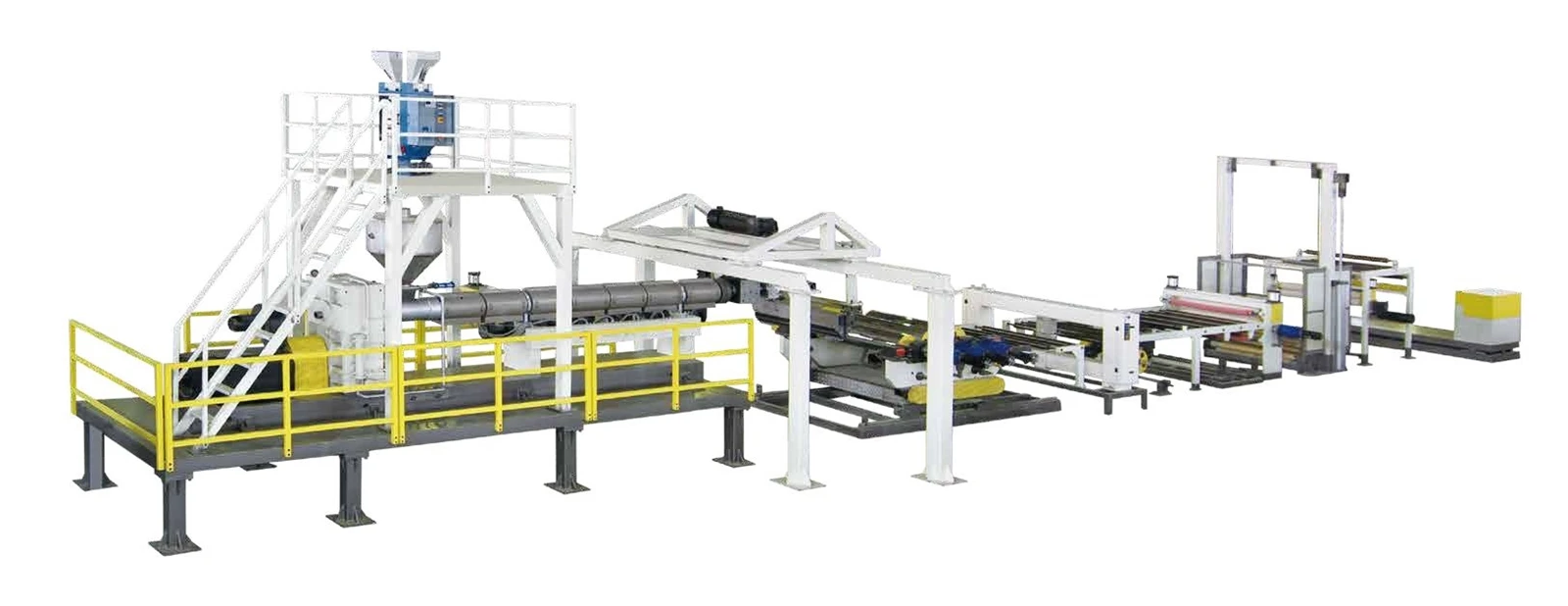

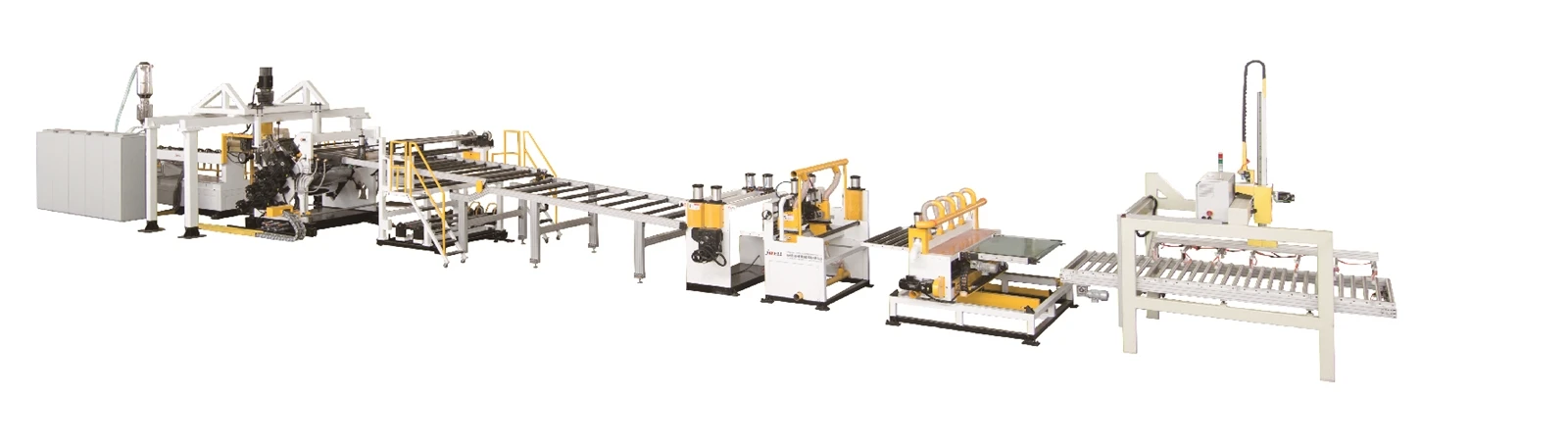

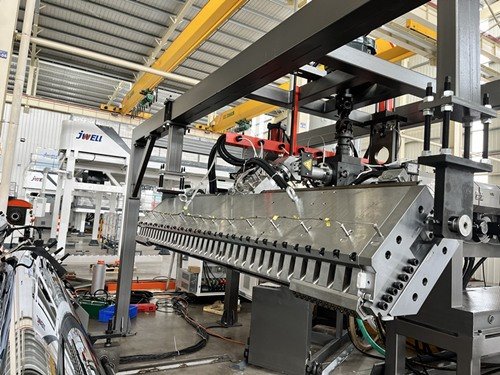

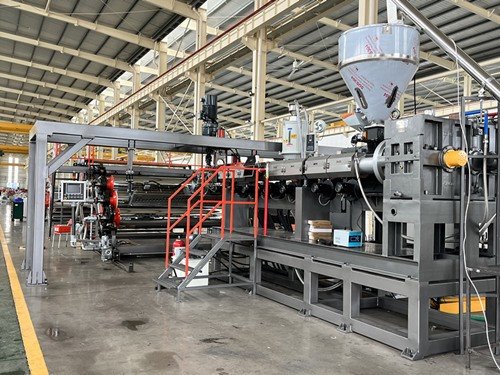

PC/PMMA Sheet Extrusion Line
Description
Technical Parameters
Application
Decoration of Garden, recreation place
01

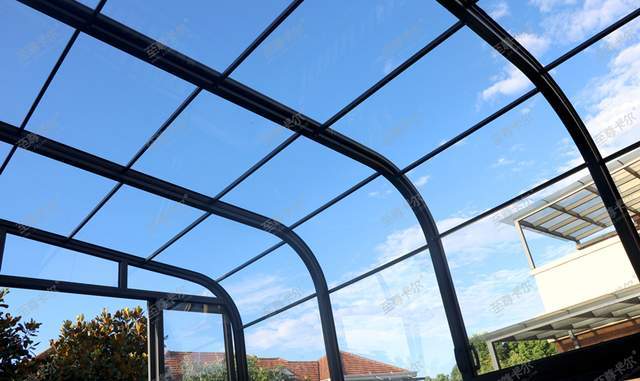

Lounge pavilion
02
Internal and external decoration for the building
03
Curtain wall of urban buliding
04
Transparent container of aviation
05
Windscreen for the motorcycle
06

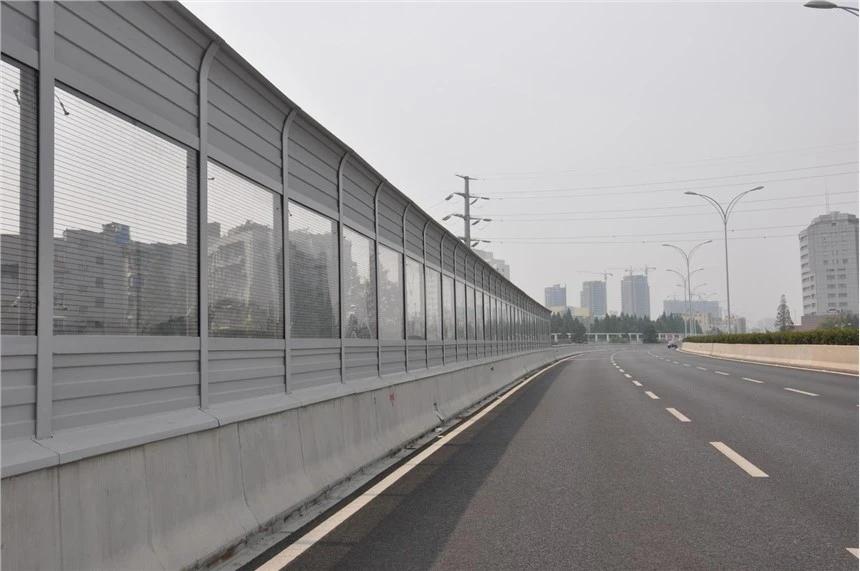

Police shield , telephone booth, billboard advertising, Noise barriers on highways and urban viaducts and so on
07
Automotive industry, film switch, LCD for computer, mobile, sunglass,helmet,special printing, medicine packing and so on
08
Machine Advantages
1. JWELL's PC/PMMA optical sheet extrusion line designed according to the rheology of the raw material.

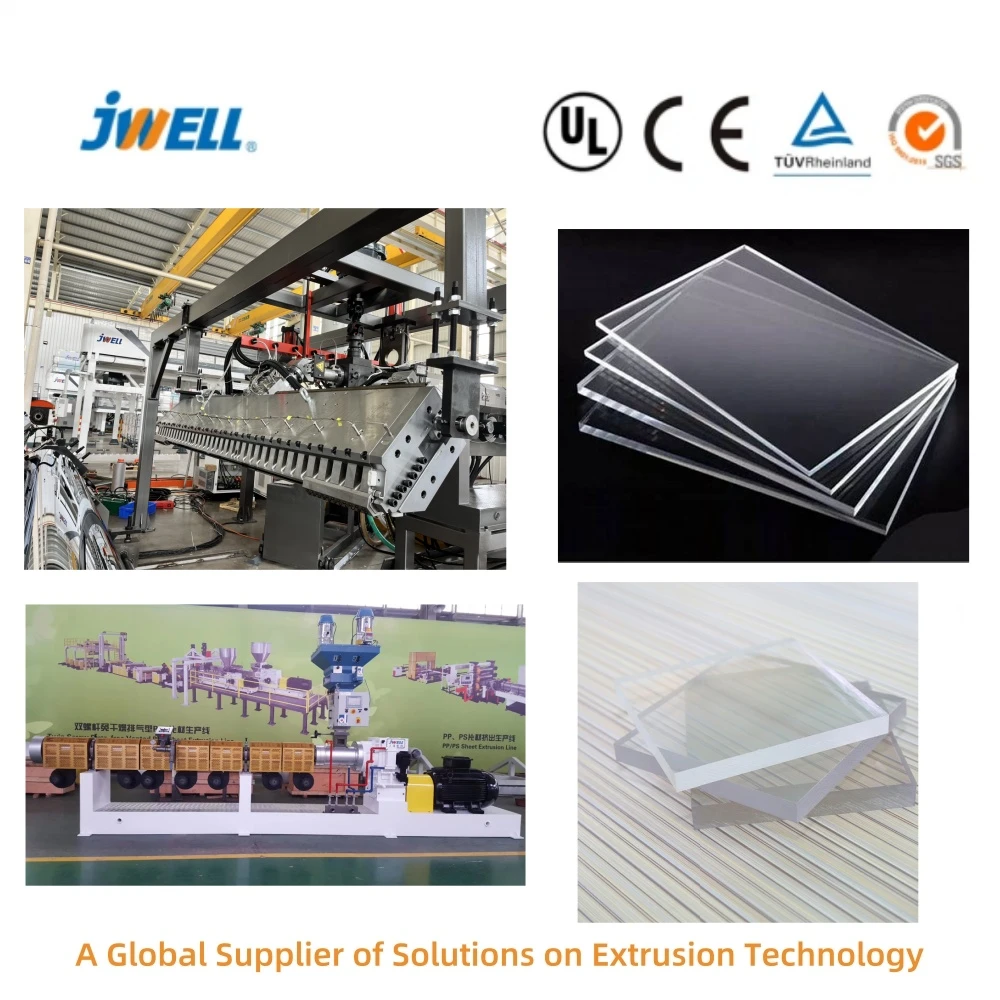

2. Maag precise metering pump system and T die ensure the uniform stability of the melt and the excellent optical properties of the sheet.

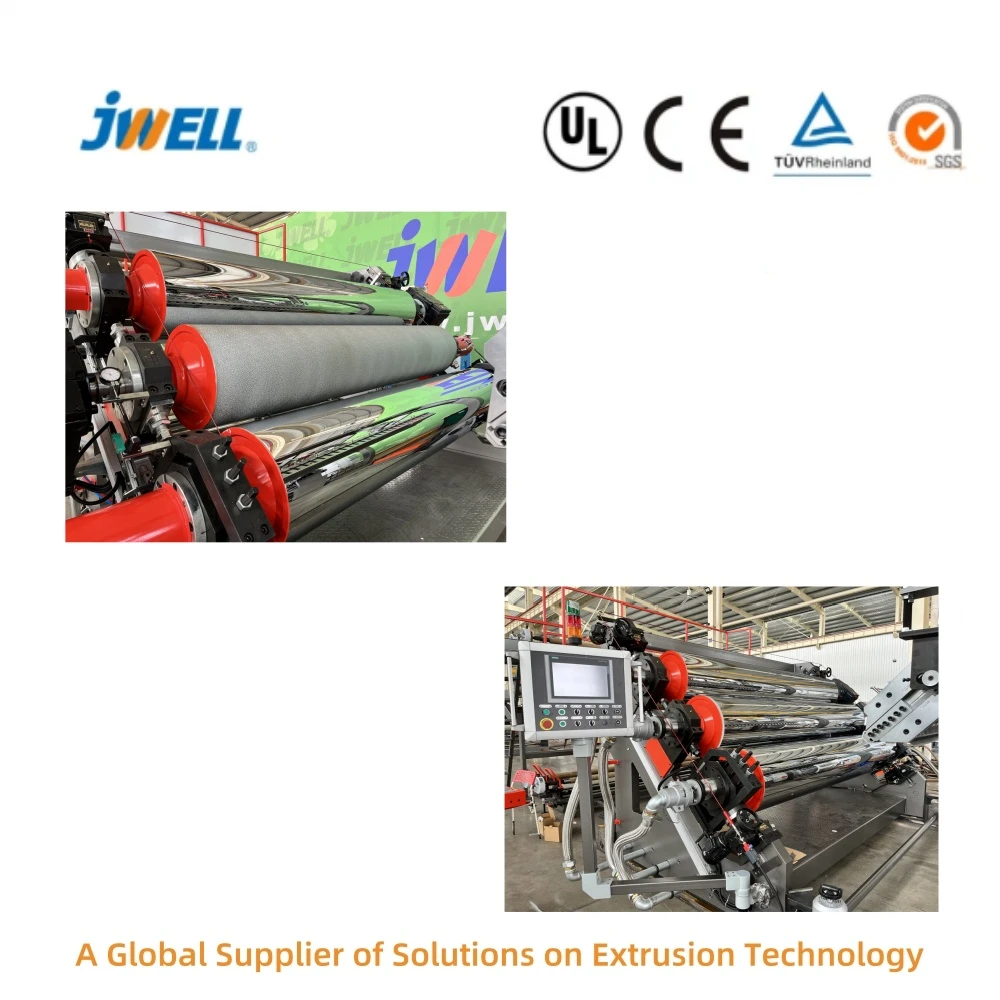

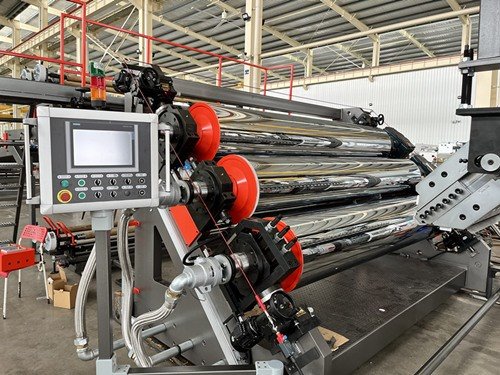

3. The roller material is 42 Crmo alloy steel. It can make sure the roller will not be out of shape after some time.
4. All the motors are servo motor and make sure the speed is completely synchronization.
5. All the cables connection is connected by plugs. Save time for the customers and convenient for the maintainance.
Technical parameters
Normal PC/PMMA Sheet:
| Model | JWS120/38 | JWS130/38 |
| Material | PC/PMMA/GPPS/ABS | PC/PMMA/GPPS/ABS |
| Product width | 1200-1400mm | 2100-2200mm |
| Product thickness | 1.5-10mm | 1.5-10mm |
| Extruder size | φ120/38; φ45/30; | φ130/38; φ45/30; |
| Max capacity | 450kg/h | 550-600kg/h |
Optic PC/PMMA Sheet:
| Model | JWS100/38 | JWS120/38 |
| Material | PC/PMMA | PC/PMMA |
| Product width | 1000mm | 1200mm |
| Product thickness | 0.125-1.2mm | 0.125-2mm |
| Extruder size | φ100/38 | φ120/38 |
| Max capacity | 250kg/h | 450kg/h |
