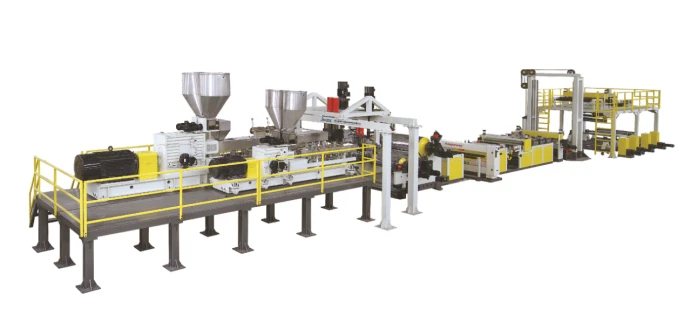

Jwell Single Screw Extrusion Sheet Extrusion Line :
● Jwell APET, PETG single and multi-layer co-extruded sheet production line is advanced technology, mature process and stable equipment now in the world. The comprehensive efficiency of more than 30% higher than the some other domestic equipment in China.
● It Can be used to produce APET, PETG, CPET and other sheet products in the same line. It can help customer save the investment and Truly realize a multi-purpose machine.
● The max capacity is 1000-1300kg/h and final product can meet market demand.
● Operation for the workers is easy and simple.

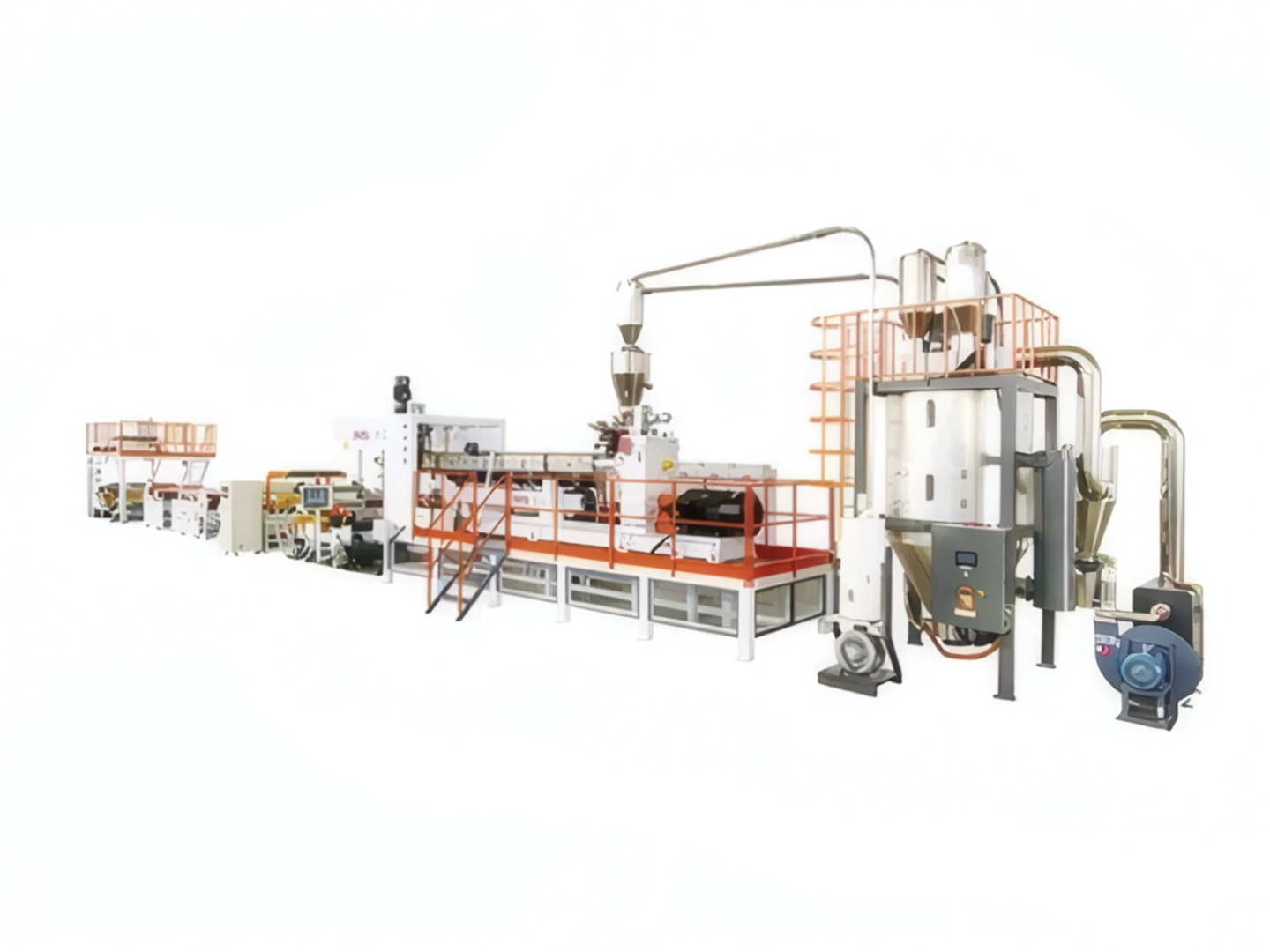

Jwell Twin Screw Extrusion Sheet Extrusion Line :
● No need Crystallization. Save the cost for customer .
● Higher capacity and lower energy consumption.
● Simple and convenient machine operation
● It is very suitable for crushed material. Max 100% crushed material.
● It will not damage IV grade too much.
● The uniqure screw combination give the good materila melt.
● The symmetrical thin wall roller improves the cooling efficiency and improves the productivity and sheet quality.
● The multi-component feeding device can be reasonable to control the proportion of new material, return material, color masterbatch, etc.
Material Difference
APET
APET full name is Amorphous Polyethylene Terephthalate. APET polyester SHEET (PET SHEET), also known as polyester hard tape, is a thermoplastic environmental protection plastic product. Tts edge material and waste can be recycled. The chemical elements contained in the same as paper for carbon, hydrogen, oxygen, is a degradable plastic. A-pet environmental protection film is widely used in cosmetics, food, electronics, toys, printing and other industries packaging, such as A variety of high-grade blister packaging, folding boxes, plastic cans, window pieces and so on. Typical applications are heat shrinkable polyester films.
PETG
PETG is also called low temperature PET. The performance of PETG is very different from that of APET . PETG sheet has outstanding toughness and high impact strength. Its impact strength is 3 to 10 times that of modified polyacrylates, and has a wide processing range, high mechanical strength and excellent flexibility, higher transparency than PVC, good luster, easy to print and has environmental protection advantages.
PLA
PLA is a degradable resin that can be used in the hard packaging of fruits, vegetables, eggs, cooked and baked goods, as well as in the packaging of goods such as sandwiches, biscuits and flowers.
Main Technical Parameters
| Model | Multi layer | Single layer | Highly-efficient |
| Extruder specification | JW120/65-1000 | JW120-1000 | JW150-1500 |
| Thickness of the product | 0.20-1.5mm | 0.2-1.5mm | 0.2-1.5mm |
| Main motor power | 132kw/45kw | 132kw | 200kw |
| Max extrusion capacity | 600-700kg/h | 550-650kg/h | 800-1000kg/h |
| Note: The specifications are subject to change without prior notice. | |||
