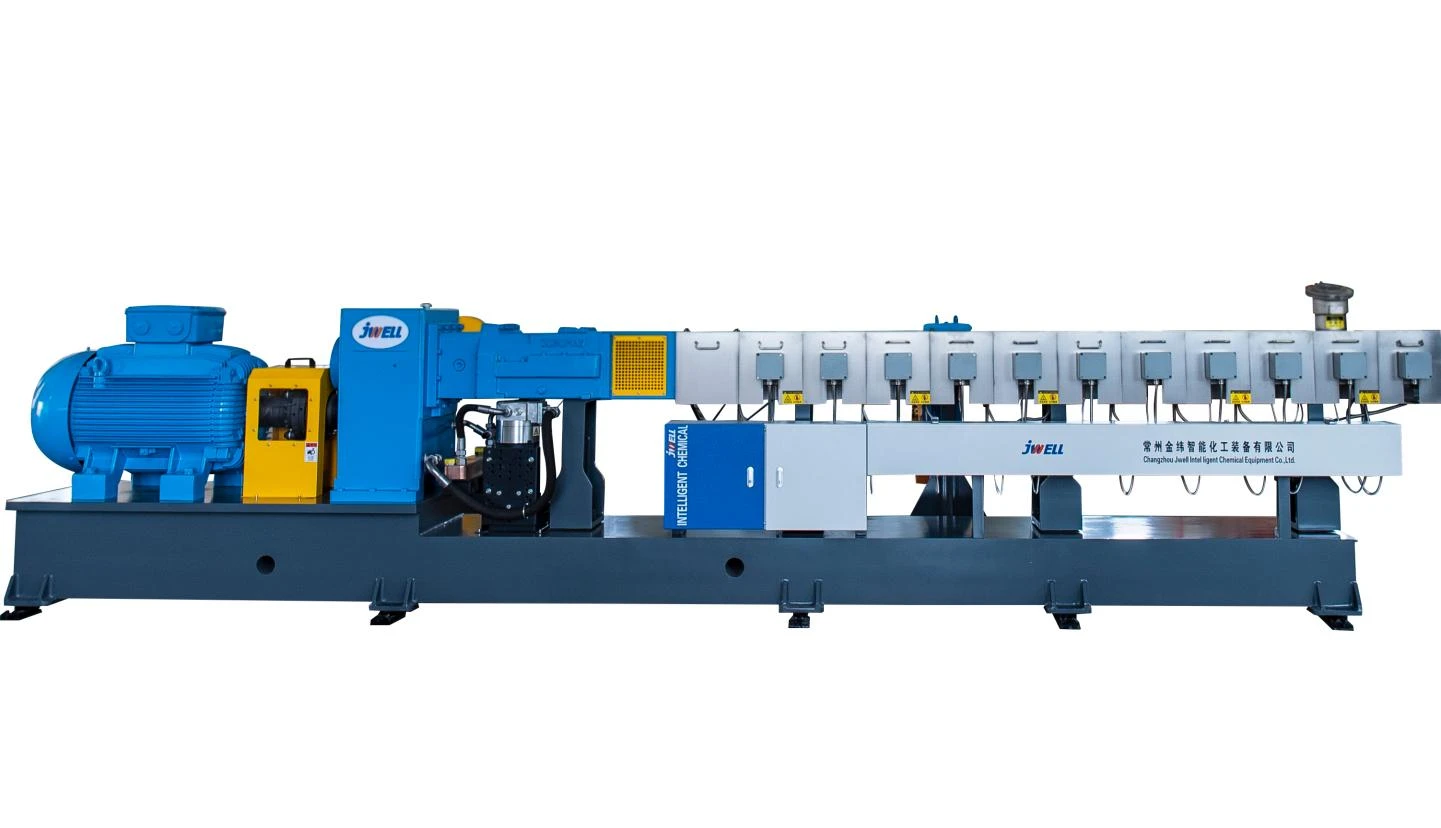

Ht High Torque Series Twin Screw Plastic Extruder
Description
Technical Parameters
Application
Jwell's high torques twin screw plastic extruder is mainly used for modification, reaction, filling, extrusion molding, etc.
Equipment Advantages
Flexible screw arrangement and combination
Because of Flexible screw arrangement and combination, Jwell high torques twin screw extruder can be suitable for different kinds of material formulations.
01
imported high torque gearbox
Carefully select imported high torque gearbox to make sure higher quality machine and stable running for a long time
02
middle and high-end customers
HT high torque series twin-screw extruders are aimed at middle and high-end customers at domestic and abroad, pursuing higher quality, stronger performance and better reliability.
03
Cost-effectiveness advantage
Comparing with the world's first-class machine, this machine has outstanding cost-effective advantages.
04
Main Technical Parameters
| Model | Diameter mm | L/D | Screw speed rpm/min | Motor power KW | Torque per shaft N.m | Specific torque T/A3 | Capacity range kg/hr |
| CJWH35 | 35.6 | 24~68 |
600 1000 |
30 45 |
235 |
8.7 8.7 |
75~150 110~220 |
| CJWH40 | 41.1 | 24~68 |
600 1000 |
45 75 |
357 |
8.7 8.7 |
110~220 190~380 |
| CJWH52 | 51.4 | 24~68 |
600 900 |
90 132 |
692 |
8.7 8.7 |
220~440 330~660 |
| CJWH65 | 62.4 | 24~68 |
600 900 |
160 220 |
1224 |
8.7 8.7 |
400~800 550~1100 |
| CJWH75 | 71.0 | 24~68 |
600 800 |
220 315 |
1880 |
8.7 8.7 |
550~1100 800~1600 |
| CJWH85 | 81.0 | 24~68 |
600 800 |
315 450 |
2713 |
8.7 8.7 |
800~1600 1100~2200 |
| CJWH95 | 93.0 | 24~68 |
600 700 |
500 600 |
4131 |
8.7 8.7 |
1250~2500 1500~3000 |
| CJWH110 | 108.0 | 24~68 |
500 600 |
630 800 |
6346 |
8.7 8.7 |
1250~2500 1500~3000 |
| CJWH120 | 120.0 | 24~68 |
500 600 |
900 1000 |
8705 |
8.7 8.7 |
2250~4500 2500~5000 |
| CJWH135 | 132.0 | 24~68 |
400 500 |
900 1200 |
11586 |
8.7 8.7 |
2250~4500 3000~6000 |
| Note:The speafications are subject to change wthout prior notice. | |||||||
